| Title / Product Explanation | Cut-out (φ) | Lumen | Beam Angle (º) | Height | Diameter (φ) | Weight | Finishing Colour | Installation Type | CCT | Voltage(V) | CRI | Dimmable | Operating Voltage(V) | Operating Temperature(℃) | Housing Material | IP | Colour Consistency (SDCM) | Driver Integrated | Driver Failure Rate | Frequency (HZ) | AC/DC | Optical Material | Application Temperature(℃) | Luminous flux Consistency(φ) | Storage Environment(℃) | |
 |

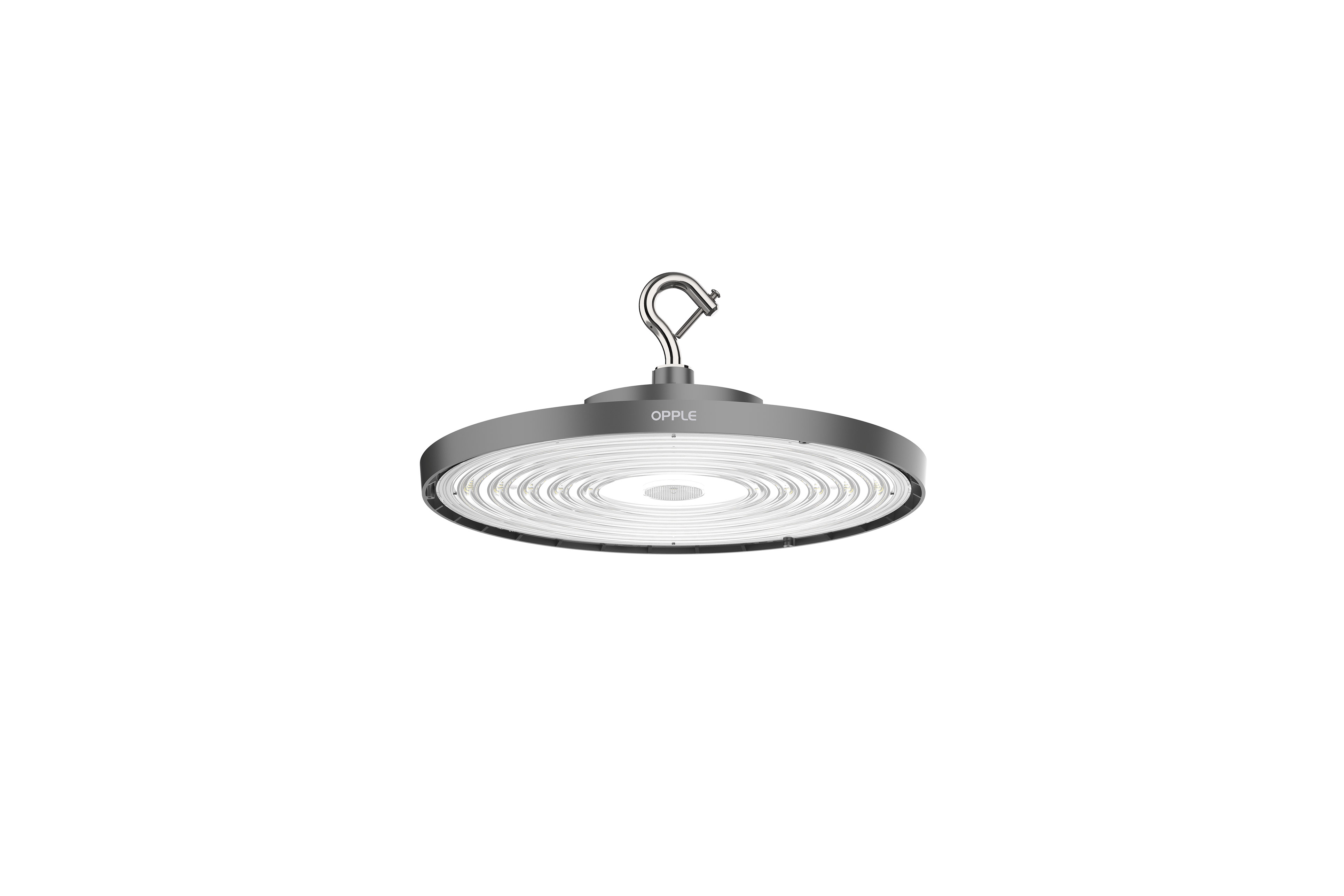

LEDHighbay-E II 240W-5700-90D-GY-GP | - | 31,200 | 90 | 159 | 420 | 3.34 | Gray | Hanging Surface Mount | 5700-Daylight | 220-240 | ≥80 | No | 176-264 | -30～+50 | Aluminum Die Cast | IP65 | <6 | Yes | - | - | AC | PC | - | 50,000 | -30～+60 |
|
LEDHighbay-E II 200W-5700-90D-GY-GP | - | 26,000 | 90 | 159 | 340 | 3.34 | Gray | - | 5700-Daylight | 220-240 | ≥80 | No | 220-240 | -30～+50 | Aluminum Die Cast | IP65 | <6 | Yes | - | - | AC | PC | - | 50,000 | -30～+60 |
|
LEDHighbay-E II 150W-5700-90D-GY-GP | - | 19,500 | 90 | 159 | 340 | 2.41 | Gray | - | 5700-Daylight | 220-240 | ≥80 | No | 176-264 | -30～+50 | Aluminum Die Cast | IP65 | <6 | Yes | - | - | AC | PC | - | 50,000 | -30～+60 |
|
LEDHighbay-E II 100W-5700-90D-GY-GP | - | 13,000 | 90 | 159 | 260 | 1.74 | Gray | Hanging Surface Mount | 5700-Daylight | 220-240 | ≥80 | No | 176-264 | -30～+50 | Aluminum Die Cast+PBT | IP65 | <6 | Yes | - | - | AC | PC | - | 50,000 | -30～+60 |
|
LEDHighbay-E II 50W-5700-90D-GY-GP | - | 6,500 | 90 | 159 | 260 | 1.25 | Gray | Hanging Surface Mount | 5700-Daylight | 220-240 | ≥80 | No | 176-264 | -30～+50 | Aluminum Die Cast | IP65 | <6 | Yes | - | - | AC | PC | - | 50,000 | -30～+60 |
