LEDDOWNLIGHTRC-US R70-4W-6500-WH-GP

LEDDOWNLIGHTRC-US R70-4W-6500-WH-GP

LEDDOWNLIGHTRC-US R70-4W-6500-WH-GP

Cut-out (φ) : 70~85
CCT : 6500-مهتابی
Lumen : 250
Beam Angle (º) : 100
Height : 34
Diameter (φ) : 95
Weight : 0.044
Finishing Colour : White
Installation Type : Recessed
Voltage(V) : 220-240
CRI : ≥80
Operating Voltage(V) : 176-265
Dimmable : No
Operating Temperature(℃) : -25～+50
Luminous flux Consistency(φ) : 20000
Housing Material : PP
IP : IP20
Colour Consistency (SDCM) : 6
Driver Integrated : Yes
Driver Failure Rate : 1% at 5000 h
Frequency (HZ) : 50/60
AC/DC : AC
Optical Material : PP
Application Temperature(℃) : 25
Storage Environment(℃) : -25～+50

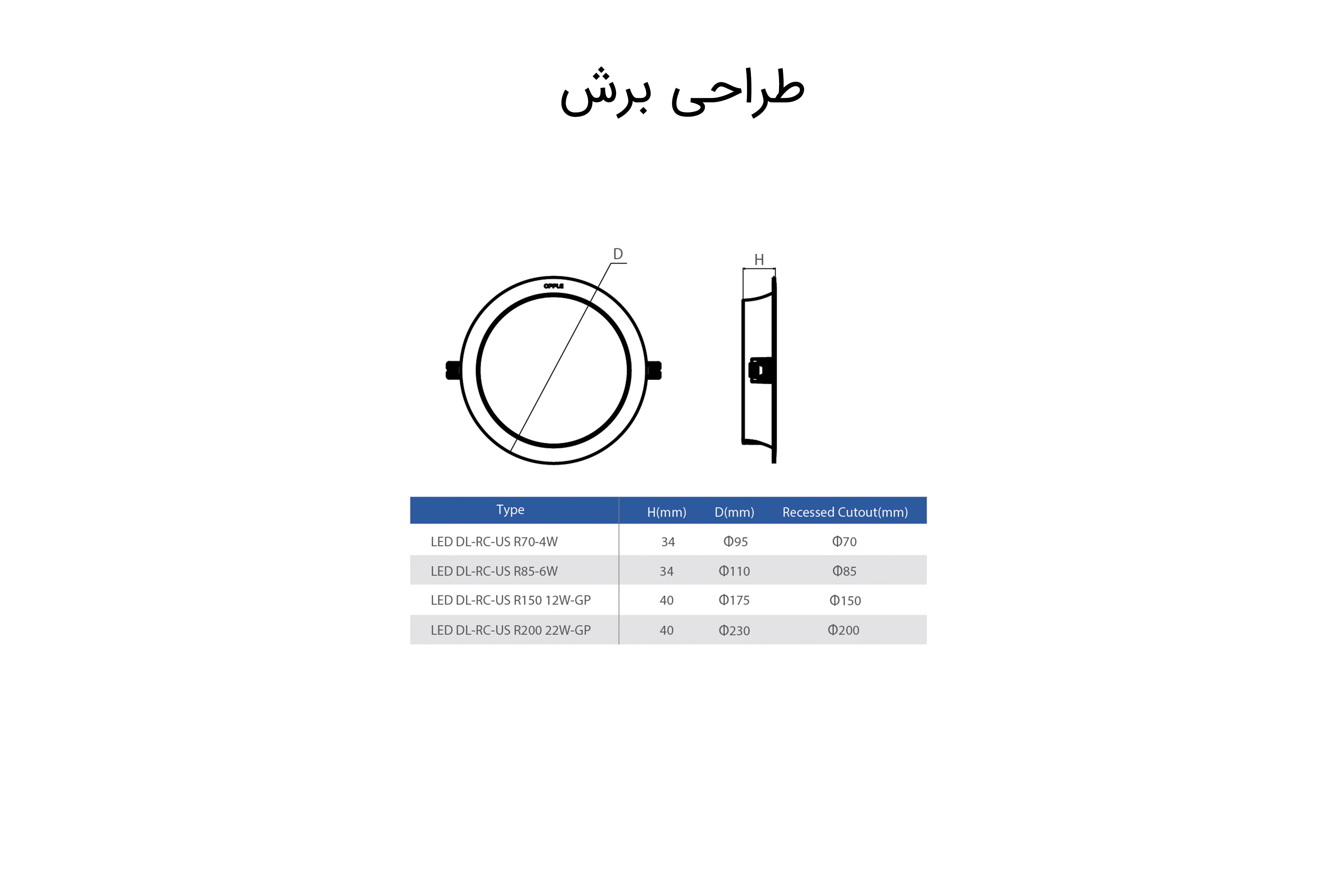

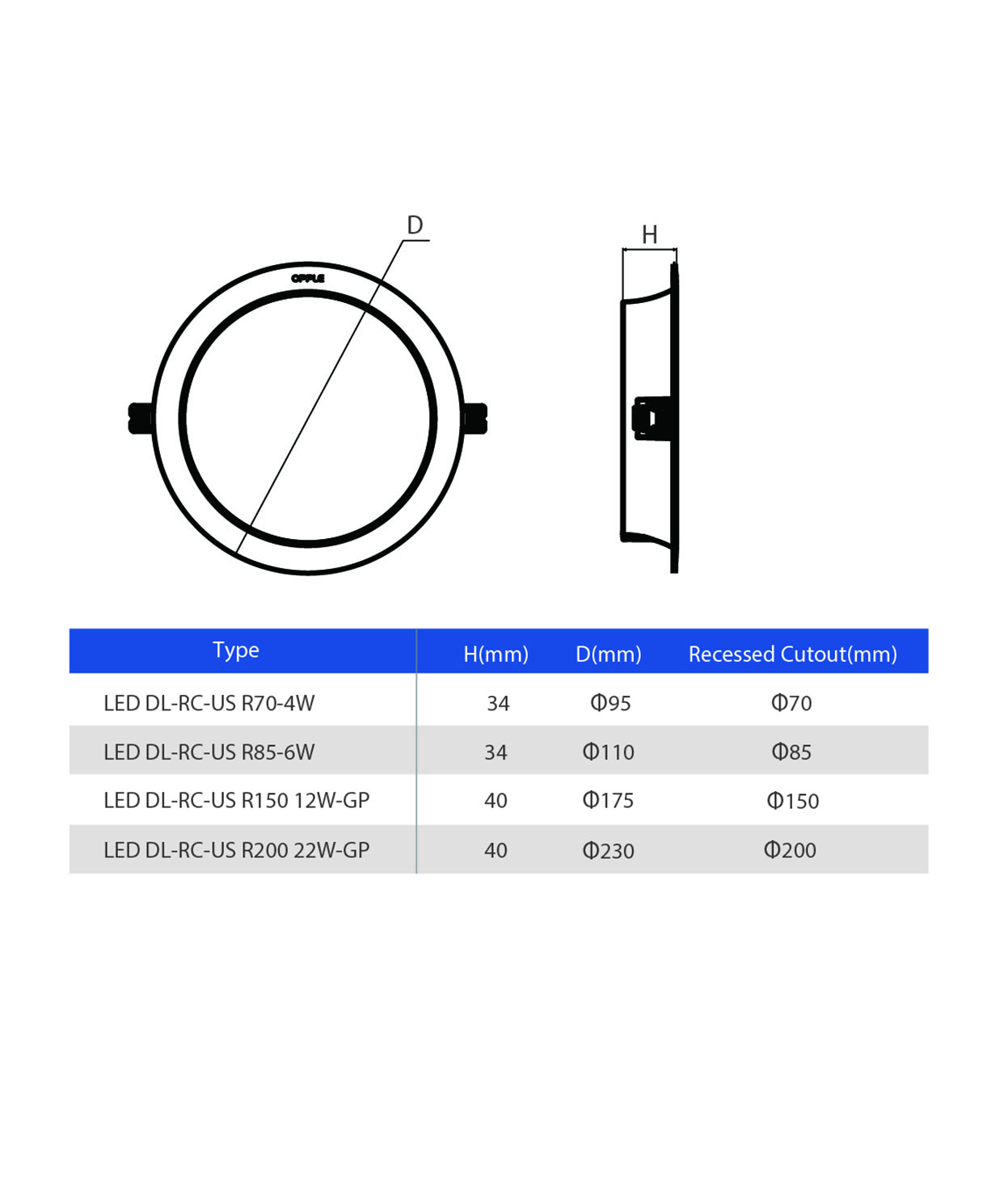

Dimensional Drawing

Abbreviation List

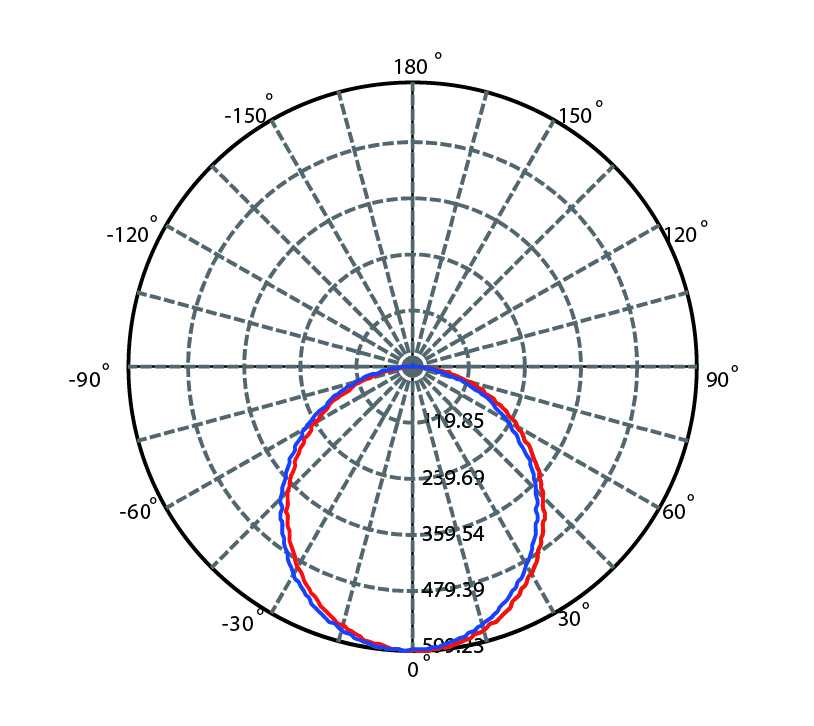

Photometric Graph
