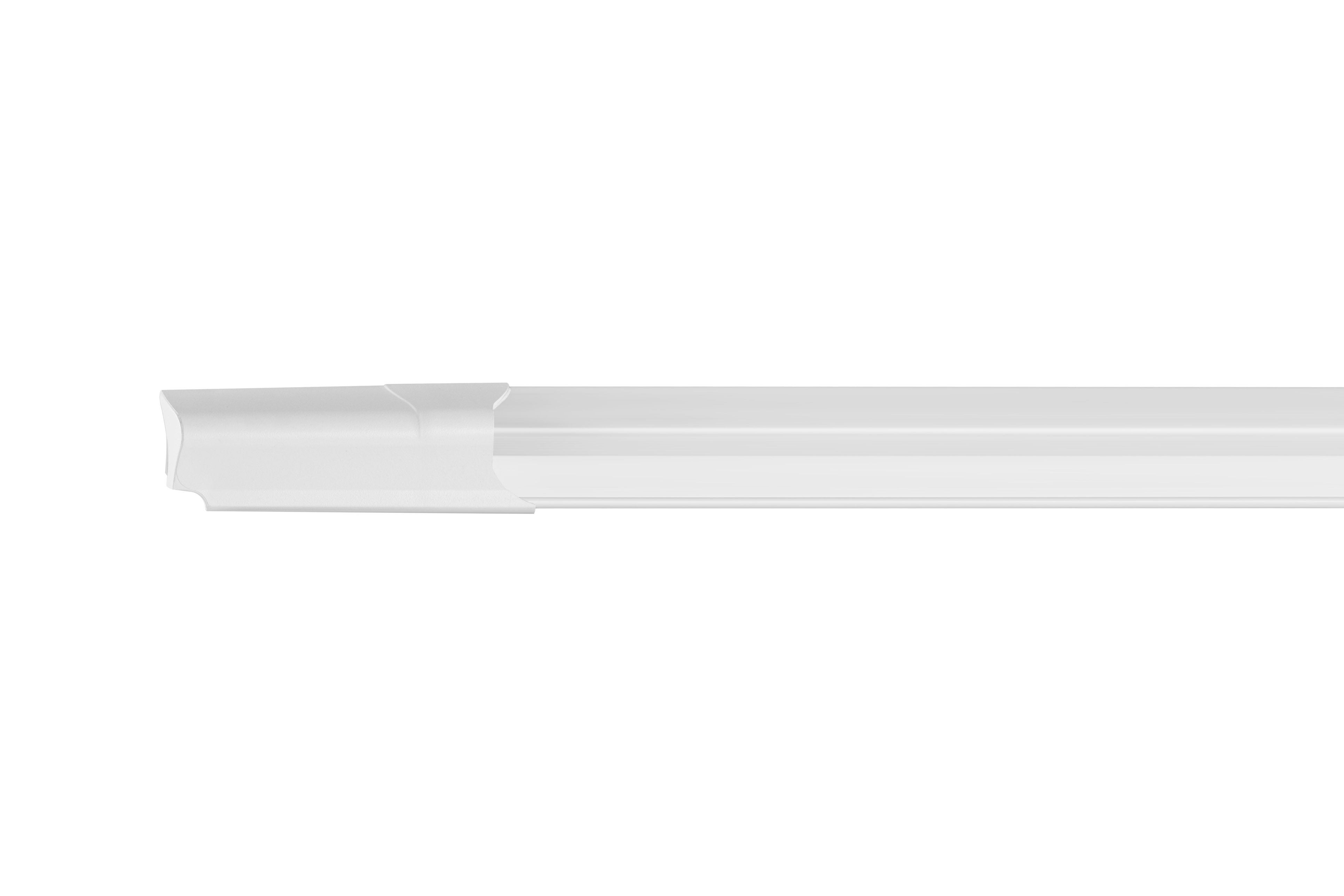

LED-E-HF Batten-SF-600mm 18W-6500

LED-E-HF Batten-SF-600mm 18W-6500

LED-E-HF Batten-SF-600mm 18W-6500

Length : 600
Width : 50
CCT : 6500-Daylight
Lumen : 2000
Beam Angle (º) : 120
Height : 47
Weight : 0.419
Finishing Colour : White+Gray
Installation Type : Surface Mount /Hanging
Voltage(V) : 220-240
CRI : ≥80
Dimmable : No
Luminous flux Consistency(φ) : 20000
Housing Material : Aluminum
IP : IP20
Colour Consistency (SDCM) : 6
Driver Integrated : Yes
Driver Failure Rate : 1% at 5000 h
Frequency (HZ) : 50/60
AC/DC : AC
Optical Material : PC
Storage Environment(℃) : -25～+50

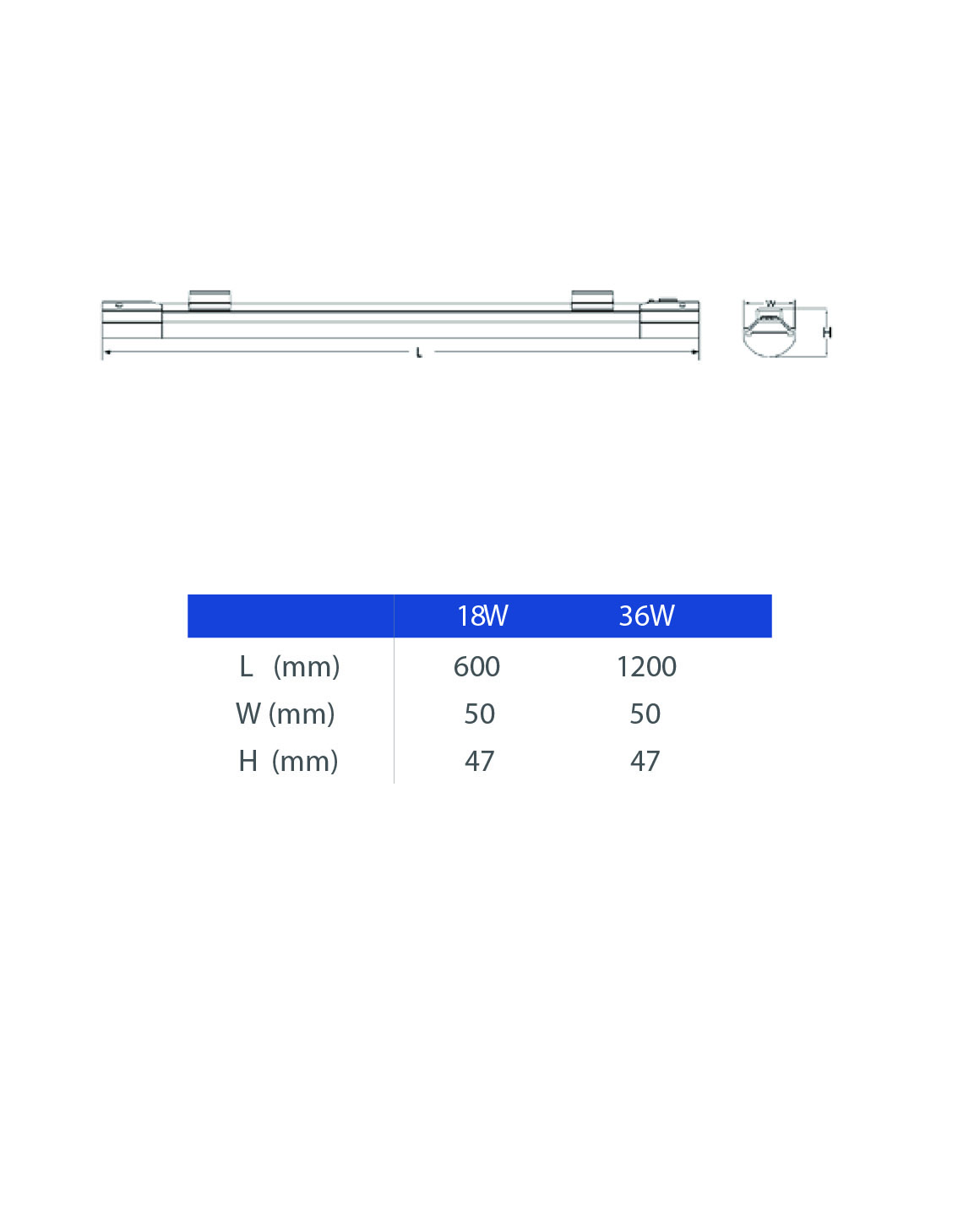

Dimensional Drawing

Abbreviation List

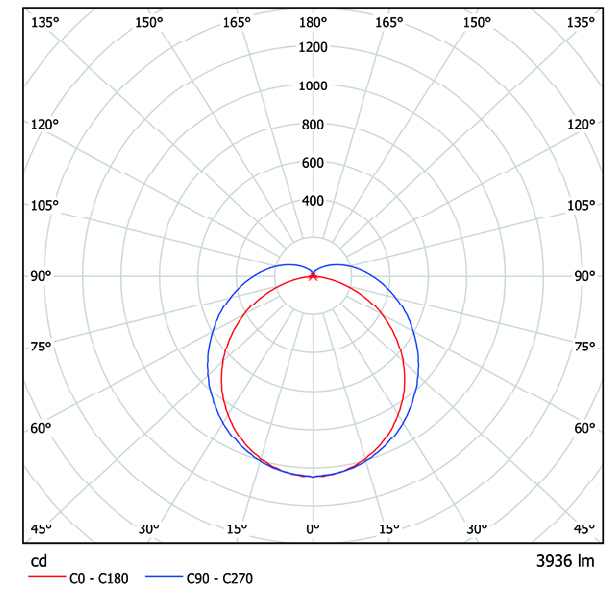

Photometric Graph
